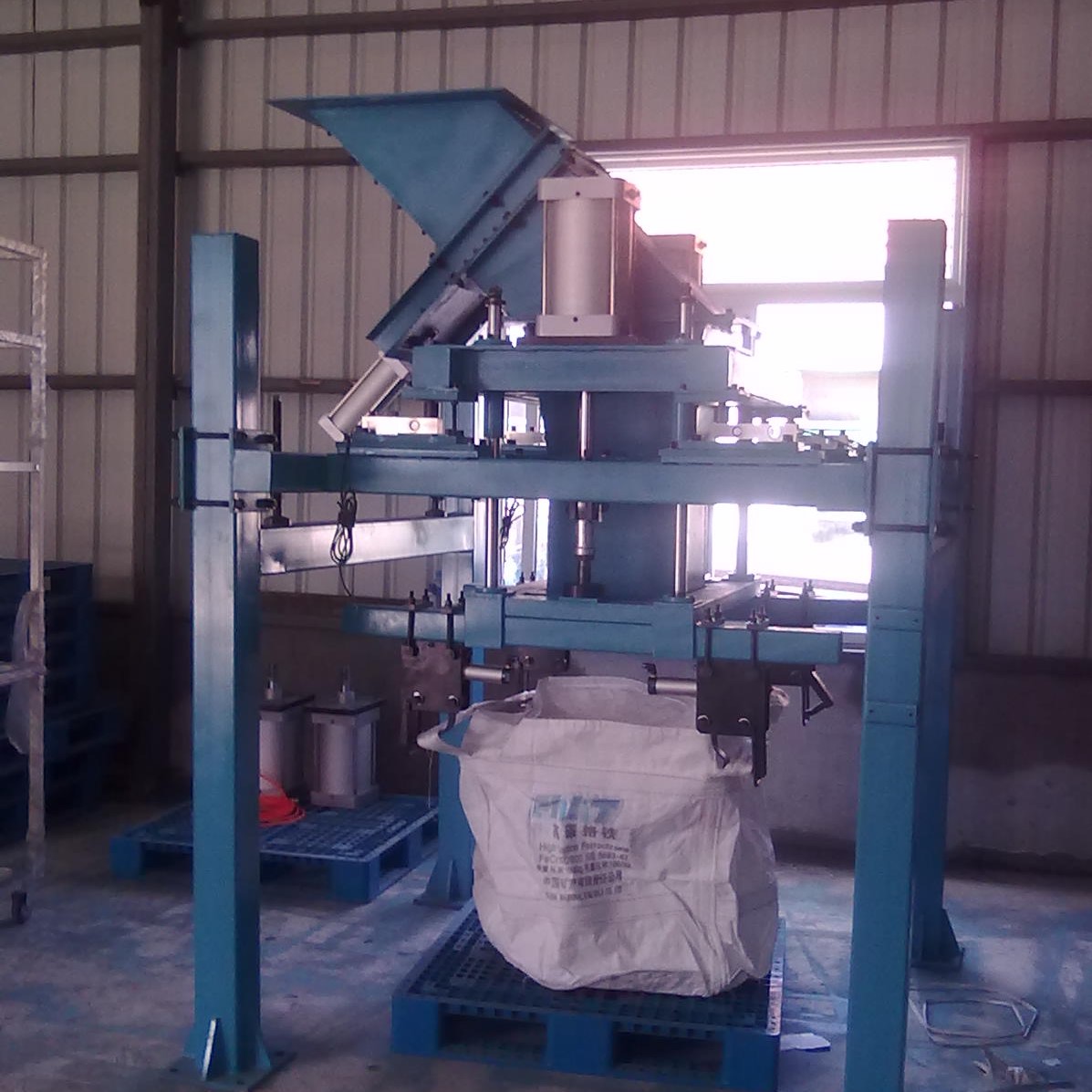

DCS1000-ZS is mainly composed of gravity filler (Variable diameter valve control), frame, weighing platform, hanging bag device, bag clamping device, lifting platform, conveyor, electrical control system, pneumatic control system, etc. When the packaging system works, in addition to the manually place bag, the packaging process is automatically completed by the PLC program control, and the procedures of bag clamping, blanking, metering, loose bag, conveying, etc. are completed in turn; The packaging system has the characteristics of accurate counting, simple operation, low noise, less dust, compact structure, convenient installation, safety and reliability, and safe interlocking between the workstations.

Characteristics
Filler		Gravity filler (Variable diameter valve control)
Count		Weigh as hanging
Control system		Functions such as automatic drop correction, error alarm and fault self-diagnosis, Equipped with a communication interface, easy to connect, network, can be the packaging process at all times monitored and networked management.
Scope of material：Poor fluidity of powders, granular materials.
Scope of application：Chemical, pharmaceutical, feed, fertilizer, mineral powder, electric power, coal, metallurgy, cement, biological engineering, etc
Paramete
Capacity	20-40bag/h
Accuracy	≤±0.2%
Size	500-2000Kg/bag
Power souce	Customized
Pressure air	0.6-0.8MPa. 5-10 m3/h
Blowing rat	1000 -4000m3/h
Environment：Temp -10℃-50℃. Humidity＜80%
Accessories
Convey option	1. No 2. Chain conveyor 3. Chain roller conveyo 4. Trolley….
Protection	1. Explosion-proof 2. No explosion-proof
Dust elimination	1. Dust elimination 2. No
Material	1. Steel 2. stainless steel
Shake	1. Up and down(standard) 2. bottom shake

1. Weigh sensor parameters.

Specification	SB-1	Minimum static load	0Kg
Accuracy class	C3	Minimum calibration division value	0.14Kg
Maximum capacity	1t	Sensitivity	2.000mv/v
Safe limit load	150%RC	Zero outpu	＜1%RC
Insulation resistance	≥5000MΩ	Input impedance	381±4Ω
Excitation voltage	5-15V	Output imped	350±1Ω

2. The controller needs an external resistance strain bridge sensor, and the sensor is connected to the instrument as shown in the figure below. When using a four-wire sensor, the SN+ and EX+ of the instrument must be short-circuited, and SN- and EX- must be short-circuited.
